Szczegóły Produktu:
Zapłata:
|
| Outer Tubes Material: | 316L Stainless Steel | Inner Tubes Material: | Alloy C-22 |
|---|---|---|---|
| Pressure: | 0.1MPa-1.6MPa | Media: | Non-Toxic |
| Structure: | Jacketed Pipe Exchanger | Outer tubes dimension: | OD34*2.5mm |
| Weight: | 18 Tons | Other Available Materials: | Titanium & Titanium alloy, Nickel & Nickel alloy, Copper-Nickel Alloy, Zirconium, Tantalum |

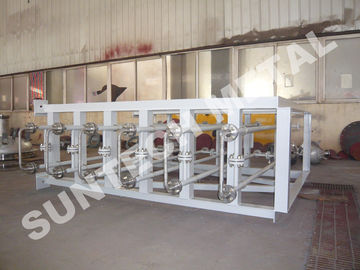

316L Stainless Steel Shell Tube Heat Exchanger for Paper and Pulping Industry
Product Description
| Item Name | 316L Stainless Steel Tubular exchanger for Waste Water Treatment |
| Application | Waste Water Treatment |
| Outer Tubes Material | 316L |
| Inner Tubes Material | Alloy C-22 |
| Diameter | Outer Tubes dimension: OD63*3.5mm; Inner Tubes dimension: OD34*2.5mm |
| Dimension | Dimension: W2000*L4000*H1500mm |
| Weight | 1tons |
| Other Available Materials | Titanium & Titanium alloy, Stainless Steel, Copper-Nickel Alloy, Zirconium, Tantalum |
Main structure
It is made up of several parallel corrugated pipes in the jacket of a shell pipe, to form a compound pipe. The compound pipes are connected with each as a step, the inner pipe of each step connected by U pattern pipe, and the outer pipe connected with material apter removing the pipe hole cover. The medium flows in the outer pipe in the anti clean direction, takes heat exchange through the inner pipe. The inner wall of the material pipe adopts advance polish Ra<0.4um, the pipe edge joint adopts imported automatic joint machine jointing, so to ensure the complete clean of the heat-exchanging pipe.
Standard specification for our popular products:
|
Item |
Item Name |
Code |
|
1 |
Heat Exchanger |
TEMA,ASME,EN13445,PED |
|
2 |
Tower |
ASME,EN13445,PED |
|
3 |
Vessel |
ASME,EN13445,PED |
|
4 |
Storage Tank |
API620,650 |
|
5 |
Reactor |
ASME,EN13445,PED |
Features:
1. More effective
2. Easy operation
3. Made according to request of the customer
