Szczegóły Produktu:
Zapłata:
|
| Features: | High Pressure, High Tempreture, Anticorrosion, Long Serving Life | Production Code: | ASTM B898, ASME SB898 |
|---|---|---|---|
| Surface Treatment: | Auto Polished | OD(mm): | OD:390mm or Custimize |
| Thickness: | (6.35+31.75)mm | Material: | SB265 Gr.1 Titanium/Carbon Steel |
| Standard: | ANSI, DIN, GB, EN, JIS, NB | Certificate: | ISO9001, Mill Test Certificate, Materials Certificate |
| Exported Countries: | USA, Australia, Russia, Bahrain, Venezuela, Greece, Korea, Indonesia | Application: | Heat Exchangers, Condensers, Coolers, HAVC System,etc. |
| Applied Industries: | Power Generation, Industry Refrigeration, Oil&Gas, Chemical&Petrochemical |
Heat Exchanger Equipment Bimetal Titanium Carbon Steel Clad Tube Sheet
Detailed Product Description:

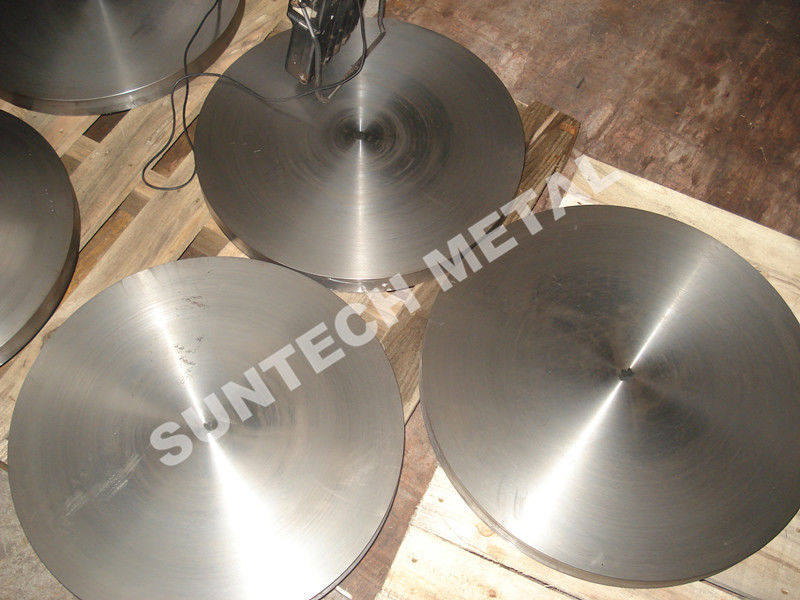

SB265 Gr.1 Titanium/Carbon Steel Clad Tubesheet
Cladding Layer:SB265 Gr.1
Base Layer:SA516 Gr.70N
Size:(6.35+31.75)mm*OD390mm
Edge Treatment: Machine
Surface status: Clad layer surface will be polished after bonding.
Bonding rate: 100% sound bonding
Packing: Plywood case
Characteristics and applications :
Titanium metals with excellent corrosion resistance, is widely used for kinds of chemical reactors, heat exchanger parts; however, it costs too much. A good way to solve this problem is using titanium-carbon steel clad plates (titanium-steel explosive clad metals) substituting for titanium plates.
This kind of clad metals combining all the characteristics of good corrosion resistance of titanium plate, with good strength of steel, can meet the requirements of structure as well as reducing the cost.
For example, if we make urea synthesis tower, vacuum salt evaporator, polyester reaction kettle, by titanium clad metals, the cost will reduce around 30-40%.
Titanium-steel clad plates are widely used in soda manufacturing.
In recent years, there's a new application for titanium-steel clad plates, which is, used for corrosion resistance materials of steel structures in marine civil projects. Not only because of its low cost, but also the requirements of installation, and welding, titanium-steel clad plates are necessary to meet properties.
Titanium-steel clad plates are widely used for tanks, towers, heat exchangers, pipes, etc. in the field of petrochemical industry, that because of its good corrosion resistance, high temperature resistance, and improving their lifetime of equipments.
In order to resist corrosion and reduce cost, people will prefer to choose stainless steel clad plates, nickel alloy clad plates, and titanium-steel clad plates.

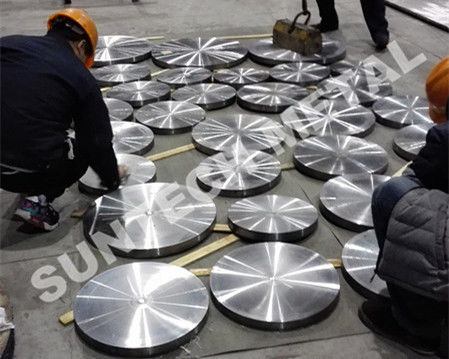

Ultrasonic testing
Packing
